Optional explosion-proof / waterproof, dust – proof / antibacterial functions

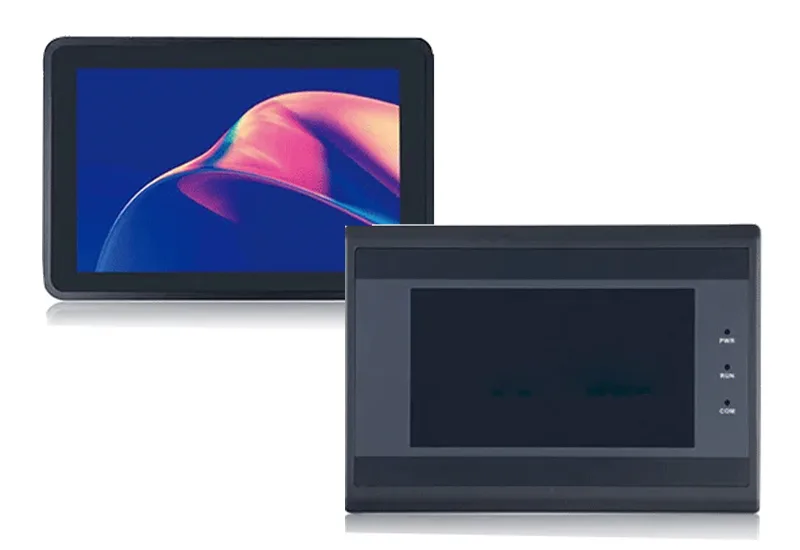

TDM touch screen, Provide customers with options such as explosion-proof, waterproof and dustproof, and antibacterial functions.

Request

Contact UsContact Us

Description

TDM Specification
Cover Plate
Item		Description
Optional		Glass Cover、Overlay、Keyboard
Material		Glass、PET
Content		Customized
Specification		Customized
Surface Treatment		scratch resistance,antibacterial,AG、AF、AR，UV resistance
Application Mode		Embedded，Pure flat
Touch-Panel
Item		Description
TP Type		RTP，CTP
TP Structure		GG，GFF，OGS，GF
Interface		I2C，USB
Operation Mode		Wet hands, glove mode, capacitive pen, anti accidental touch, salt water resistance, etc
Application Industries		Instrumentation, medical equipment, construction machinery, industrial control equipment, home appliances
LCM
Item	unit	Description
LCD Type		TFT-LCD	TFT-LCD	TFT-LCD
size	〔inch〕	7″	10.1″	12.1″
Resolution	〔pixel〕	800x480	1280x800	1024x768
Active Area	〔mm〕	152.4(H)x91.44(V)	216.9(H)x135.6(V)	245.7 (H)x184.3 (V)
Pixel Pitch	〔mm〕	0.1905x0.1905	0.1695x0.1695	0.24x0.24
Pixel Array		R.G.B. Vertical Stripe	R.G.B. Vertical Stripe	R.G.B. Vertical Stripe
Display Mode		AHVA, Normally Black	AHVA, Normally Black	TN, Normally White
VDD	〔Volt〕	3.3（typ.)	3.3（typ.)	3.3（typ.)
Size	〔mm〕	170.0(H)x111.0(V)x7.5(D)(TYP.)	227.91(H)x 148(V)x7.75(T)(max.) PCBA side	279.0(H)x209.0(V)x9.0(D)(TYP.)
Interface	〕	1 channel LVDS	LVDS 1Port 8bit	1 channel LVDS
Surface Coating		Anti-Glare, Hardness 3H	HC	Anti-Glare, Hardness 3H
Colors		262K(6-bit)/16.2M(8-bit)	16.7M colors	16.7M/ 262K colors
Operation Temp，Operational Storage (Non-Operational Storage)	〔°C〕	-30 to +85 -30 to +85	-20 to +70 -30 to +80	-30 to +85 -30 to +85
RoHS Compliance		RoHS Compliance	RoHS Compliance	RoHS Compliance
