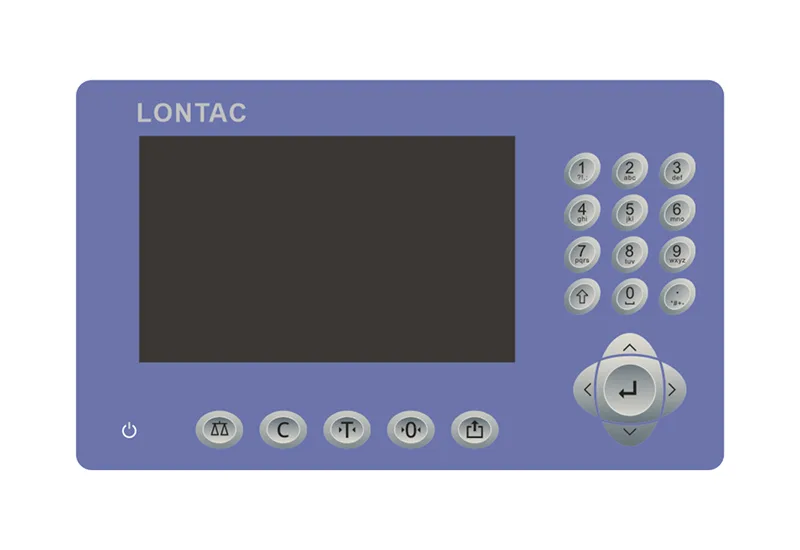

电阻式TDM

电阻式TDM

TDM触摸屏，防静电，高灵敏度，精准触控，AG防眩光，AF防指纹，防水防尘，集成定制化面板，多种材质/尺寸可选，支持小批量定制。

触控模组规格书

盖板信息

项   目

规   格

可选类别

Glass盖板、PEToverlay、键盘

   材 质

Glass、PET

    规 格

可定制

表面处理

防划伤、防菌、AG、AF、AR

LCD基础信息

项   目

单  位

规   格

屏幕对角线〔inch〕7″10.1″12.1″
显示区域〔mm〕152.4(H)x91.44(V)216.96(H)x135.6(V)245.76 (H)x184.32 (V)
像素 HxV800x4801280x8001024x768
像素间距〔mm〕0.1905x0.19050.1695x0.16950.24x0.24
像素排列R.G.B. Vertical StripeR.G.B. Vertical StripeR.G.B. Vertical Stripe
显示模式AHVA, Normally BlackAHVA, Normally BlackTN, Normally White
额定输放电压VDD〔Volt〕3.3（typ.)3.3（typ.)3.3（typ.)
典型功耗〔Watt〕TBDLED power max 3.024 W

Logic Power :1(Max)@White pattern 3.3V input

TBD
重量〔g〕157290495 (Max.)
物理尺寸〔mm〕170.0(H)x111.0(V)x7.5(D)(TYP.)227.91(H)x 148(V)x7.75(T)(max.) PCBA side279.0(H)x209.0(V)x9.0(D)(TYP.)
电气接口1 channel LVDSLVDS 1Port 8bit1 channel LVDS
支持颜色262K(6-bit)/16.2M(8-bit)16.7M colors16.7M/ 262K colors
温度范围

操作存储（非操作）

〔°C〕-30 to +85

-30 to +85

-20 to +70

-30 to +80

-30 to +85

-30 to +85

RoHS合规性RoHS合规RoHS合规RoHS合规
